Case History

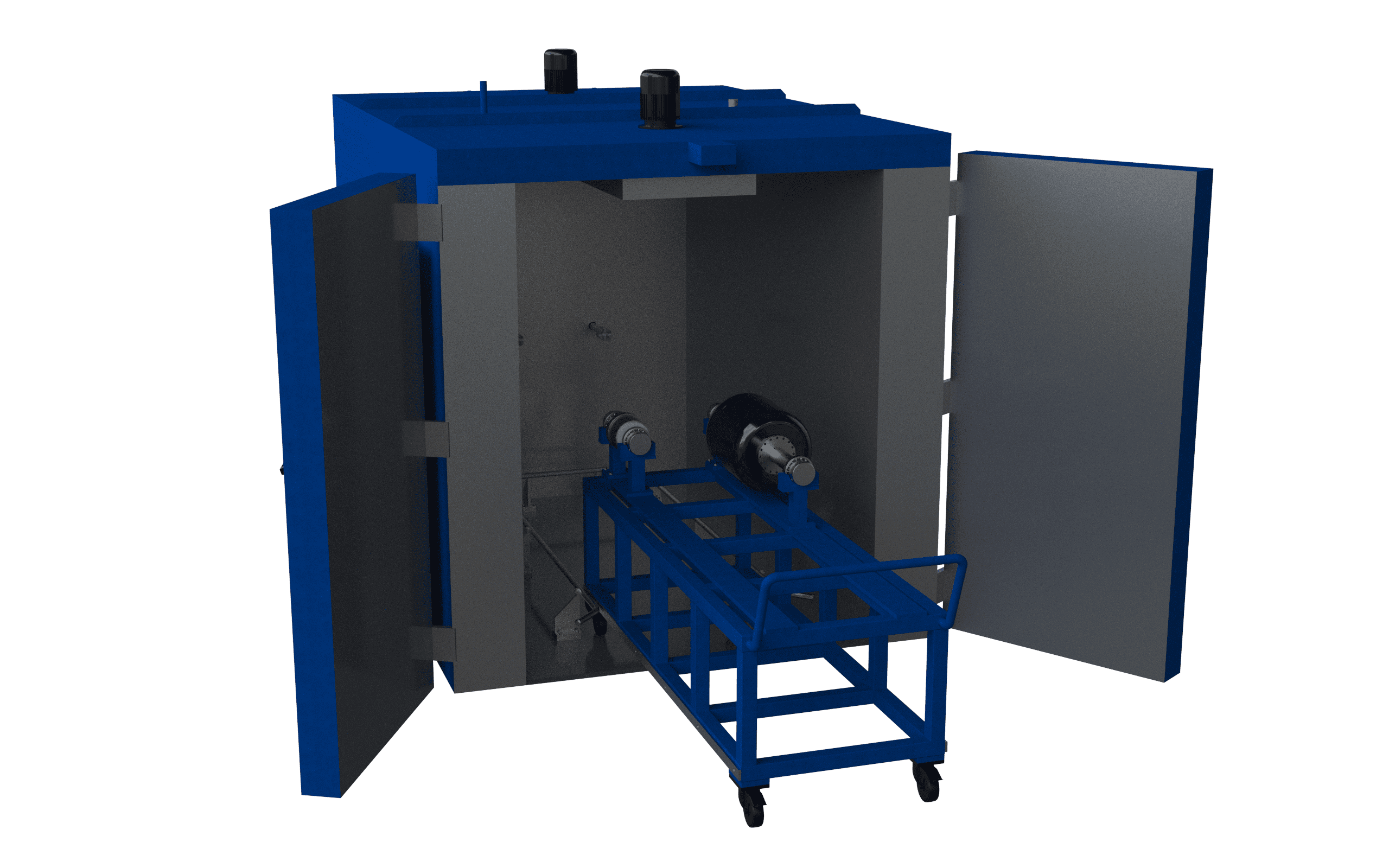

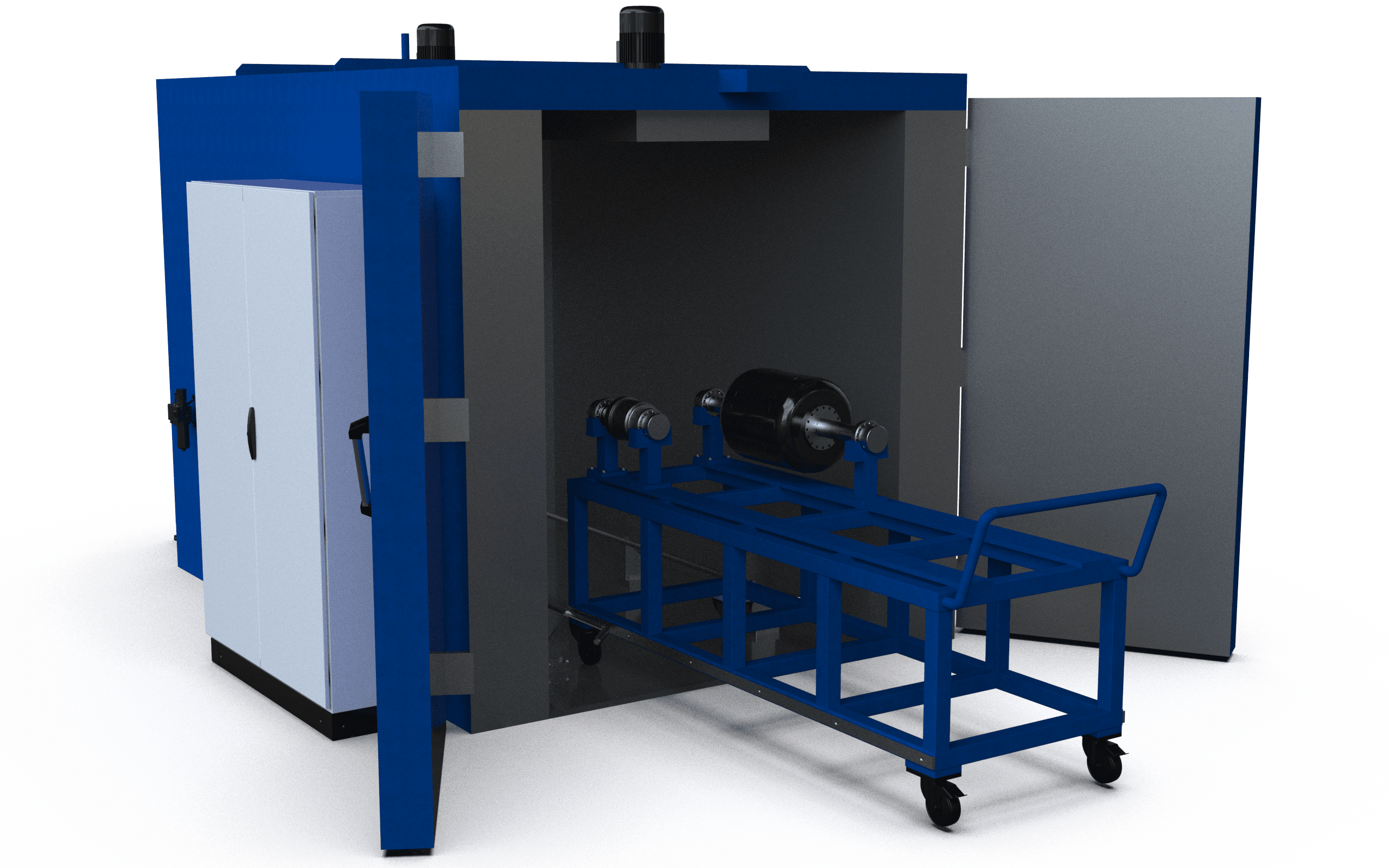

Carbon item polymerization oven

The Carbon item polymerization oven guarantees a maximum operating temperature of 300°C, with an accuracy of ±2°C.
The total thermal power is approximately 48 kW, with a supply voltage of 400 V. The oven has three heating zones and two stirring motors to ensure uniform heat distribution.

The axial fans mounted on the upper part ensure homogenization of the hot air inside the chamber.
For carbon fiber items placed in firing, a rotation of the same is possible by connecting them to flanges located on the bottom of the oven, assurig support with a removable trolley.


The control panel allows the display and download of data via data logger and offers the possibility of managing recipes in a flexible and intuitive way.
